Wide Frame Dead Man Foot Throttle



Hooker Hitch Wide Frame Adjustable Foot / Dead Man Throttle

OUT OF STOCK



  • Fits all wide frame and some spread frame Cub Cadet pulling tractors.
  • CNC Machined from 6061 Aluminum.
  • Glass smooth movement, Stainless Steel shaft on nylon bushings.
  • Fully adjustable, approx. 4" of pedal movement can give you anywhere from 1/4"- 1" of cable movement.

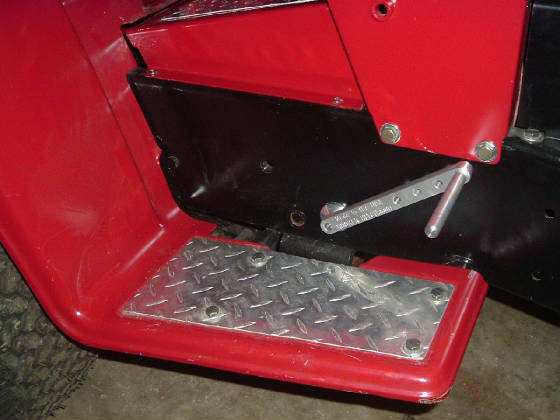

  • Foot pedal can be set in 1 of 4 different holes for any size foot.
  • Foot pedal can be adjusted as high or as low to the running board as you would like.
  • New easier single wrench/socket clamping of arm.
  • All adjustments hidden inside frame for a clean look.

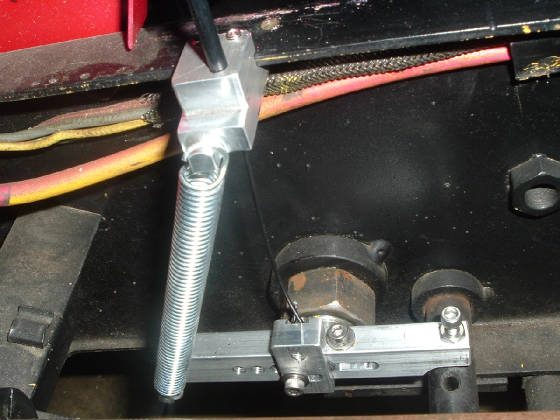

  • Mounts in the existing 1" hole in your frame (where your lift handle was) .
  • 44" of Nylon coated aircraft cable (no more annoying frayed ends).
  • 36" of 5MM nylon lined cable housing (black).
  • Stainless steel & plated steel hardware.
  • Zink plated steel spring.
  • Steel mounting hex nut.
  • Plain 1/16" cable on the carb / governor end.
  • Easy installation, no drilling or machining required.
  • Illustrated assembly and adjustment instructions included.





This item is available as part of a discounted kit.

 CT0101 Wide Frame Dead Man Throttle $55.00 Free Shipping*


""		 ""


If you are tired of sticky foot throttles that only move 1" from idle to wide open then this is what you need.

RCH101 Replacement 44" Cable & 36" Housing  $10.00 Free Shipping*

RCH102 Replacement 56" Cable & 48" Housing     $12.00  Free Shipping*



""






*Free shipping only to the lower 48 United States of AMERICA
