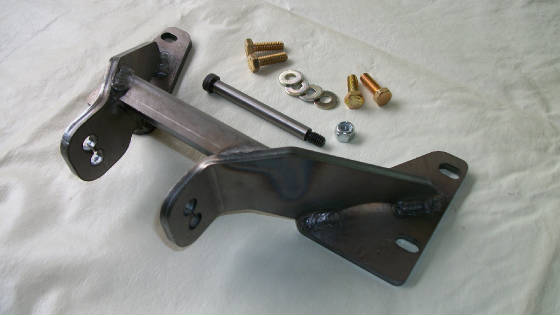

Duty Clutch Arm Hanger Designed to fit Cub Cadet Spread Frames
STOCK FOR IMMEDIATE SHIPPING
- This is one of the pieces
you need when converting from hydro to gear drive for pulling.
all Spread Frame Cub Cadet 82 series pulling tractors.
cut from 1/4" thick plate.
- Precision formed for rigid triangulated
- Welded on a precision machined fixture
for consistent direct bolt on fit.
- 4 Slotted mounting holes for left to right adjustment.
- Mounts with all 4 existing dash tower mounting holes to distribute
the load more evenly onto the frame.
- 4 mounting bolts with hardened washers included.
- 1 hardened 3/8" shoulder bolt with nylon lock nut for pivot shaft.
- 2 pivot holes to match 2 different Cub locations.
installation, no drilling or machining required, just clean, paint, and install
||CH0101 Spread Frame Clutch Hanger $65.00 Free Shipping*
