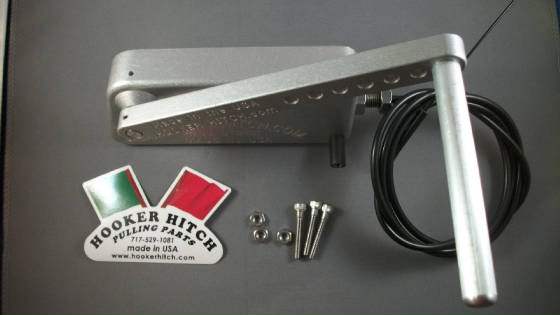

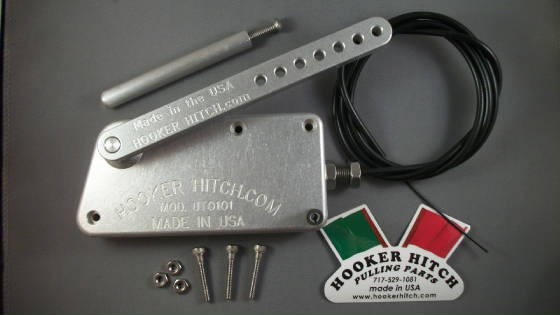

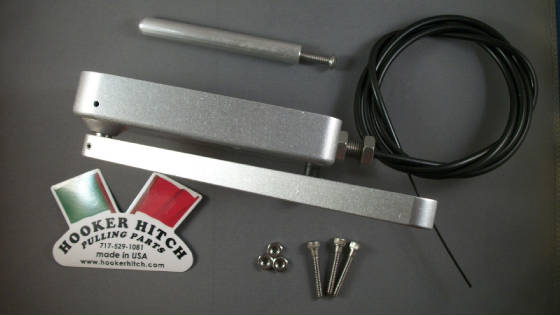

Universal Dead Man Foot Throttle






IN STOCK FOR IMMEDIATE SHIPPING



""
""





""
""

Enter content here


""




This throttle was developed for Cub Cadet Narrow frame pulling tractors.

It can also be mounted to virtually any piece of equipment requiring precision throttle control.

All that is needed is a flat vertical surface next to the foot board.

Easy mounting, just drill or drill and tap 3 holes and mount with 3 screws and nuts provided.



Fully self contained with 56" of Nylon coated aircraft cable (no more annoying frayed ends).

48" of 5MM nylon lined cable housing (black).

CNC Machined from 6061 Aluminum and various plastics.

Glass smooth movement, Stainless Steel shaft on nylon bushings.

No metal on metal bearing surfaces for long lubication free operation.

Stainless steel & plated steel hardware.

Zink plated steel springs.

Plain 1/16" cable on the carb / governor end.

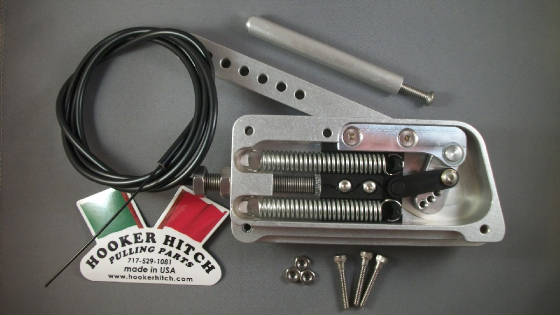

This Throttle has some very unique adjustment features.

  1. Infinitely adjustable cable travel from 3/16”-1-1/4” without changing idle point.

  2. Easy single point external RPM adjustment

  3. 5 different internal arm settings. #1=3/16”-5/8”, #2 up to 7/8”, #3 up to 1-1/16”, #4 & #5 up to 1-1/4”

  4. 7 different pedal mounting positions.


UT0101 Universal Dead Man Foot Throttle $109.00 Free Shipping*

Replacement 56" Cable & 48" Housing   $12.00  Free Shipping*

*Free shipping only to the lower 48 United States of AMERICA
